Orbit All Glass Revolving Doors

revolving AUTOMATIC door Solutions

Creates a more contemporary main entrance feature

The Orbit All Glass revolving door is manufactured using as much glass as possible and only has the slimmest of Stainless Steel profiles.

It is designed to give as much transparency into and out of the building as possible. It will provide you with the insulation and smooth traffic flow of a standard revolving door, and create a more contemporary main entrance feature.

Glazing to the drum walls and the door wings is 8mm clear laminated glass as standard.
If required, 10mm clear laminated glass in the door wings is an option. All glass edges are covered with the slimmest of stainless steel profiles.

Contact Sale Department

0845 094 5636

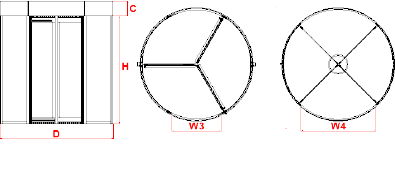

Orbit All Glass Dimensions

D	H	C	W/3	W/4
1800mm	2100mm-2800mm	16mm	800mm	1220mm
2000mm	2100mm-2800mm	16mm	920mm	2060mm
2200mm	2100mm-2800mm	16mm	1010mm	2260mm
2400mm	2100mm-2800mm	16mm	1105mm	2460mm
2600mm	2100mm-2800mm	16mm	1195mm	2660mm
2800mm	2100mm-2800mm	16mm	1285mm	2860mm
3000mm	2100mm-2800mm	16mm	1375mm	3060mm
Special Dimensions Available on Request

Orbit All Glass Specifications

BODY FINISH

Glass with minimal Stainless Steel fixings

HANDLES

Full height Satin Stainless Steel

OPTIONAL ITEMS

Night Sliding Curved Door
Floor Matting

DIMENSIONS

Diameter: 2000mm - 3000mm /Height: 2100mm - 2700mm

OPERATION

Manual / Power Assist /Automatic

NUMBER OF DOOR LEAVES

3 / 4 Wing

FLOOR RING

Satin Stainless Steel

More Products

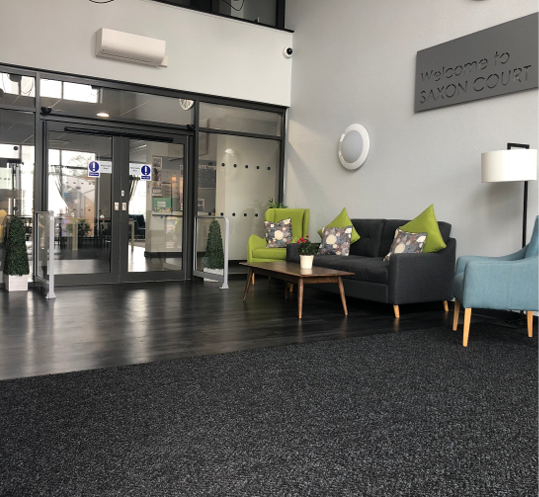

SWIFT

The Swift is our internal door operator. With a tiny footprint, this operator looks at home in any residence. The brushless motor ensures near silent operation while longevity is guaranteed. The Swift can cope with internal doors where wind is not an issue.

Details
GLIDE

The Glide sliding door operator provides exceptional performance in all scenarios. It offers a wide range of innovative options to meet the needs of all environments, with its modular design and mechanical features that create a flexible, functional, slimline, sliding door system.

Details

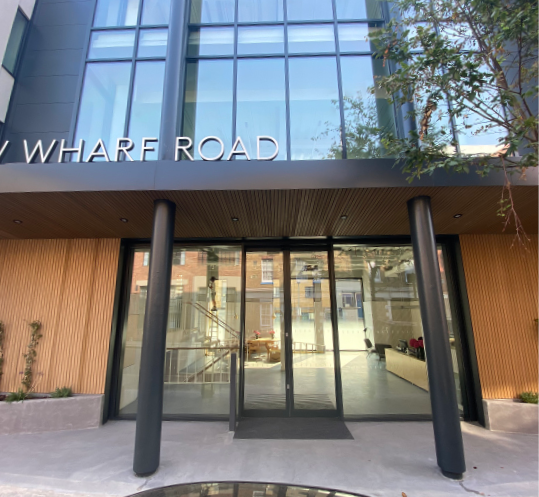

GLIDE HD

The Glide HD Automatic Door is the more powerful “big brother” to the Glide. Dealing with much heavier and larger doors, the Glide HD is ideal for when you are looking for a larger/heavier door to be automated. It has all the features of the Glide and is the same size too. Moving some of the heaviest doors in the marketplace, this operator has reliability at its core. The Glide HD comes with the Digidor logic selector and is programmable with a smartphone over Bluetooth.

Details

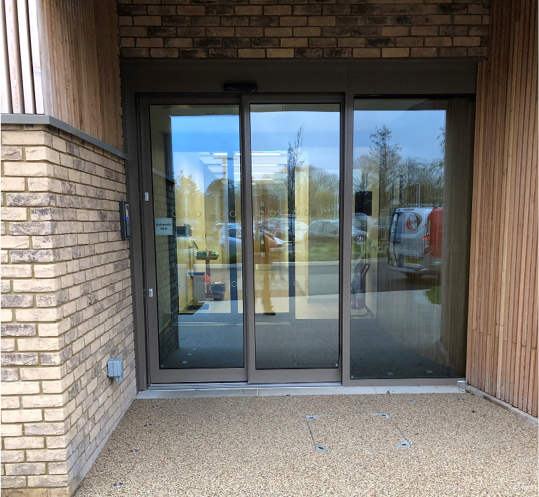

GLIDE T

The Glide T Automatic Door allows for the operation of telescopic doors. There are options to have two doors moving in unison, one direction or four doors (two on each side) opening from the centre. This operator helps when space for the door to slide into is limited, with the same reassuringly good quality of the Glide range. The complex system moves the outer leaves (further from the frame) at twice the speed of the ones closer to the façade; this ensures the leaves are synchronised and all doors close and open together. On larger doors, we will provide a small channel in the threshold if needed so the doors are kept in line during windy conditions.

Details

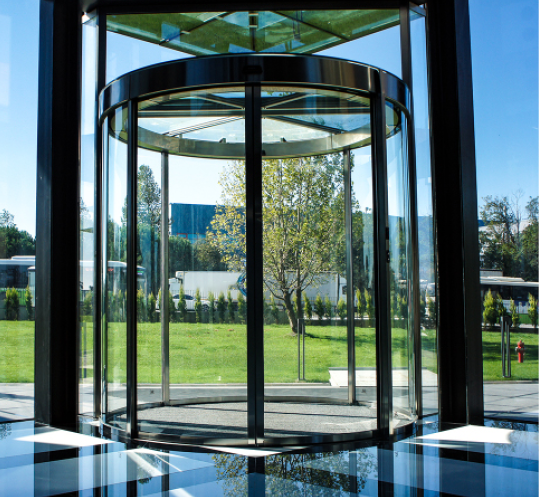

SATURN

The Saturn circular sliding door is for you when you prefer the look of a revolving door but need to provide access for all with limited space in the entry area.
The Saturn consists of two sets of curved sliding doors and offers an elegant look with the ease of use provided by sliding doors. Thanks to its curved appearance, the Saturn delivers a slightly wider throat opening than normal sliding doors with the same installation width. The Saturn automatic circular sliding door can be manufactured between 2000mm and 4000mm as standard and has various colour and surface alternatives. As with all of our products, Saturn is entirely compliant with EN16005 norms regarding safety.

Details

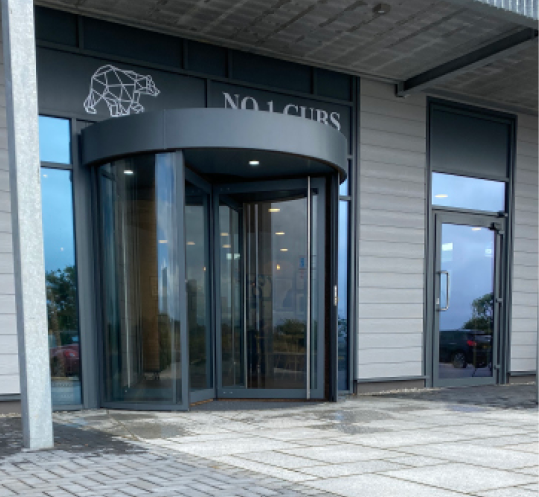

ORBIT

The revolving door was created over one hundred years ago to keep the cold out and warmth in. Over the years these doors have become not only a practical solution but also an aesthetically welcoming feature to many buildings.
The Orbit revolving Automatic door can be manufactured with polyester powder coated, anodised or stainless-steel finishes. It is designed to fit effortlessly into all manner of facades and will provide you with insulation whilst having a smooth traffic flow.
Glazing to the drum walls and the door wings is 8mm clear laminated glass as standard.
If required, 10mm clear laminated glass in the door wings is an option.

Details

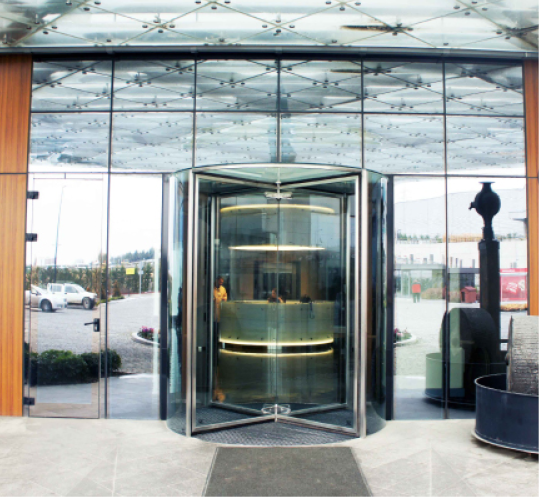

ORBIT ALL GLASS

Orbit All Glass revolving door is manufactured using as much glass as possible and only having the slimmest of Stainless Steel profiles.
It is designed to give as much transparency into and out of the building as possible. It will provide you with the insulation and smooth traffic flow of a standard revolving door and creates a more contemporary main entrance feature.
Glazing to the drum walls and the door wings is 8mm clear laminated glass as standard.
If required, 10mm clear laminated glass in the door wings is an option. All glass edges are covered with the slimmest of stainless steel profiles.

Details
ALUMINIUM

All of our aluminium doors and frames are manufactured locally using standard shopfront sections, to ensure the highest quality finish. We can provide swing and sliding doors to suit any project.
Low level thresholds and wide doors allow for compliance with DDA requirements. An option of thermally broken sections means we can cater for all your needs.
Our installations are carried out by our highly trained and professional employed technicians, who can also automate the doors as they are installed. Frames and doors are delivered by us to ensure there are no 3rd party hold ups. Typical installations are double glazed, but if required we can also single glaze using the same profiles with enhanced beading.

Details
BARRIER RAILS

Barrier rails are a fantastic way to create a focus at your entrance and also provide additional safety for your project.
They stop the doors from blowing past 90 degrees and ensure where sensors are used as activation that pedestrians approach from the correct direction. The sensors will only be looking for people approaching face on as the activation sensors “ignore” the area where the doors swing.

Details
POCKET SCREEN BARRIERS

With more and more entrances needing pocket screens it was a natural step for Prosale to manufacture our own. The standard door sections are restrictive, as they require hinges to attach to an upright. The uprights can be a distance away from where you need the pocket screen to start. This leaves either very wide pocket screens or additional uprights, making the entrance look very cumbersome.

Details
